New LF 20 of the Ff Kirchohsen
Fire Engine Photos
No: 36053   Contributor: Chris Hall, Hameln, Germany   Year: 2013   Manufacturers: Mercedes-Benz, Rosenbauer   Country: Germany

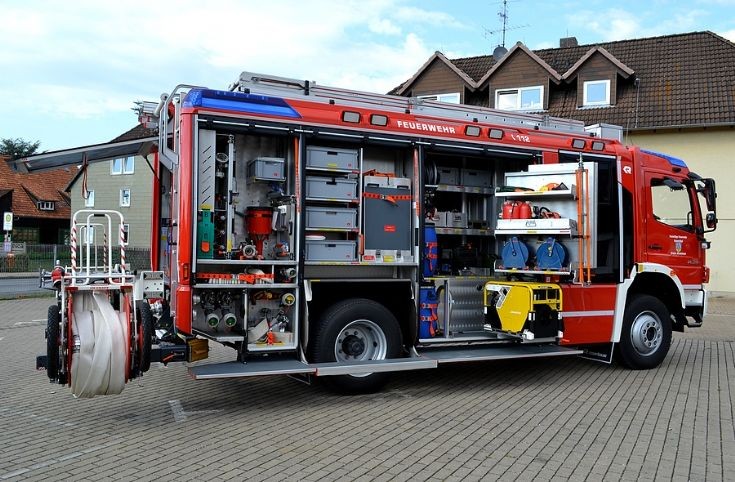

New LF 20 of the Ff Kirchohsen

Reg No HM-ET 112
Chassis: Mercedes-Benz Atego 1629 AF
Engine power: 210 kW at 2,200 1/min (6-cylinder diesel)
Displacement: 6,374 cc
Maximum speed: 100 km / h
Gross vehicle weight: 16.000 kg
Empty weight: 9715 kg
Axle load front / rear: 6,100 / 10,500 kg
Length without / with reel: 7,650 / 8,450 mm
Width: 2,500 mm
Height: 3,300 mm
Wheelbase: 4,160 mm
Constructor: Rosenbauer (AT3 ) Pump FPN 10-2000 / N25 (3.500 l / min)
Water tank 3000 l
Foam tank 200 l
Roof monitor
remote controlled lightmast
8 BA sets, including four in the crew cabin
Generator 11 kVA
chainsaw
hydroshield
Garden sprayer with Aqua Quick (means of oil removal)
Heat protection clothing
4 part connectable ladder
3-section extension ladder
folding ladder
chimney sweep rate
2 railway Earthing sets
Thermal Imager
2 one-man hose reels.
