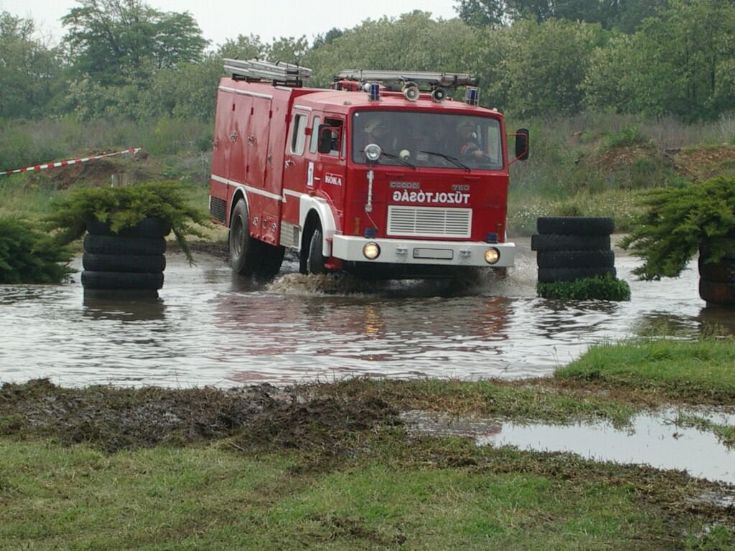

Name: "Csepel D-750.12 T�-1.1"

Engine:
R�ba - MAN 2156 HM6

Nominal power: 200 HP
Nominal power: 147 kW

Max torque: 716 Nm


Number of cylinders: 6
Arrangement: serial
Max speed: 94 km / h

Consumption: 35 l / 100 km
(manufacturer's data - 40 km/h, highway)

Braking system:
Dual-Air brakes, front-rear disc brakes Simplex system

Gearbox:
ZF S6-90 U-703

Steering:
069.26 Csepel integral power steering

Vehicle Dimensions:
Length: 7815 mm
(with Hook: 8030 mm)
Width: 2500 mm
Height: 3040 mm
Wheelbase: 4200 mm
Chassis height from the ground: 1030 mm
Total: 14,465 kg

Front ramp angle: 20 �
Rear ramp angle: 13 �

Fuel tank capacity: 180 l
Range: approx. 500 Km

Number of persons transported: 1 + 7 main Superstructure:
- Type: T�-1.1
- Manufacturer: LABOR MIM Esztergom Hungary

Pumps
- Type: 178.040.00 Rosenbauer / R 280
- Drive: shaft
- Rated speed: 2200/min
- Useful liquid transport:
10 bar: 3000 liters / min.
40 bar: 400 l / min.

Foam system:
Suction, adjustable Rosenbauer 80 RVM

Water
- Material: Steel
- Capacity: 2000 liters

Foam tank capacity:
200 liters

Heart nozzles: 2 x "A" (110mm)
Pressure nozzles: 4 x "B" (75mm)

Foam-water cannon
- Type: ELZET T-946-02-00.00-00
- Capacity: 1600 liters / min.
(8 bar)
- Horizontal rotation: 360 �
- Vertical movement: -15 � - +45 �

Water shooting distance
- Water: 60 m
- Foam: 50 m
- Fog water: 30 m


Added by Szergej on 17 March 2009.
