Fire Engines Photos

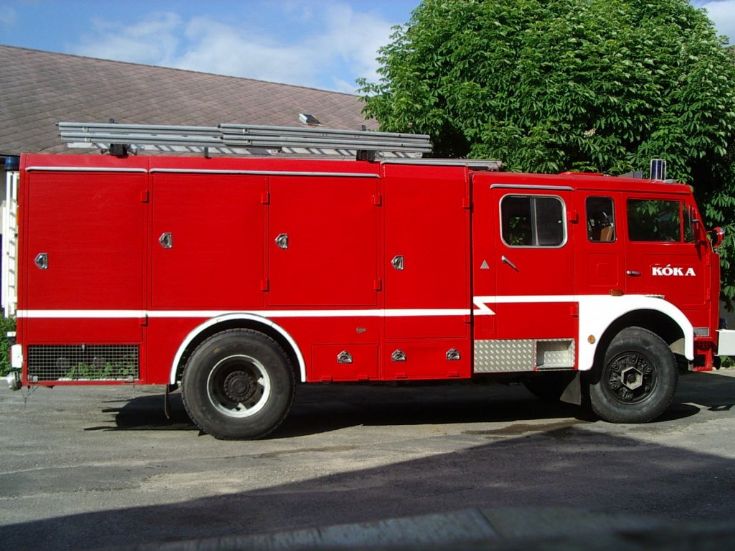

Name: "Csepel D-750.12 T�-1.1"

Engine:
R�ba - MAN 2156 HM6

Nominal power: 200 HP
Nominal power: 147 kW

Max torque: 716 Nm


Number of cylinders: 6
Arrangement: serial
Max speed: 94 km / h

Consumption: 35 l / 100 km (manufacturer's data - 40 km/h, highway)

Braking system:
Dual-Air brakes, front-rear disc break Simplex system

Gearbox:
ZF S6-90 U-703

Steering:
069.26 Csepel integral power steering

Vehicle Dimensions:
Length: 7815 mm
(with Hook: 8030 mm)
Width: 2500 mm
Height: 3040 mm
Wheelbase: 4200 mm
Chassis height from the ground: 1030 mm
Total: 14,465 kg

Front ramp angle: 20 �
Rear ramp angle: 13 �

Fuel tank capacity: 180 l
Range: approx. 500 Km

Number of persons transported: 1 + 7 Superstructure:
- Type: T�-1.1
- Manufacturer: LABOR MIM Esztergom Hungary

Pumps
- Type: 178.040.00 Rosenbauer / R 280
- Drive: shaft
- Rated speed: 2200/min
- Useful liquid transport:
10 bar: 3000 liters / min.
40 bar: 400 l / min.

Foam system:
Suction, adjustable Rosenbauer 80 RVM

Water
- Material: Steel
- Capacity: 2000 liters

Foam tank capacity:
200 liters

Heart nozzles: 2 x "A" (110mm)
Pressure nozzles: 4 x "B" (75mm)

Foam-water cannon
- Type: ELZET T-946-02-00.00-00
- Capacity: 1600 liters / min. (8 bar)
- Horizontal rotation: 360 �
- Vertical movement: -15 � - +45 �

Water shooting distance
- Water: 60 m
- Foam: 50 m
- Fog water: 30 m


Added by Szergej on 17 March 2009.

Czergej: thanks for showing us these interesting Hungarian fire-engines.

Always good to see how other folks do things.

Regards, from Canada,
Pat_R-B

Added by Pat Rivers-Bowerman on 30 August 2009.

Great archive material!

Hungarian fire services are now replacing all of these older locally manufactured units with trucks which are mainly based on Mercedes, MAN, Iveco, Renault and Scania chassis - which means they are quite quickly disappearing from active duty.

Concerning how fire services operate in Hungary, quite a lot of equipment and many SOPs mirror best practices in neighboring countries, including Germany, Austria and Poland. The capital city, Budapest, with a population of 1.7 million, has a very efficient and well-organized fire department with a quite impressive fleet of very modern trucks.

Added by Rob Johnson on 27 September 2013.
